Automatic Transmission Parts

Converter Overview


All converters will come with Billet front cover, new full Billet lock-up assembly (unless otherwise noted), furnace brazed and tig welded turbines for increased strength, and torrington bearings for longer life and reduce internal friction.

Dodge Converters


Singles are capable of 500hp with adequate line pressure. These are rebuilt with a used billet cover and stock internals. They are a low cost alternative for trucks with just a tuner that tow and want the strength and reliability of the billet front cover.

Triple disc are capable of 800HP with adequate line pressure. These are built with new a billet cover and apply piston.

68RFE triple disc after market overdrive tune is required to prevent overdrive clutch failure.

A billet input shaft is recommended when going with any three, four, or five disc converter.

GM Converters

GM converters are built using the stock lockup modified to accept the driver ring.

The HD GM converters are built with a solid billet piston

Singles are capable of 500hp with adequate line pressure.

Three disc are capable of 800HP with adequate line pressure.

Three disc HD are for extreme conditions and must be accompanied by billet shafts.

Ford Converters

Three disc converters use a billet front cover with the stock type studded front assembly.

Three disc HD units for the ford utilize a solid billet piston and upgraded internals for higher horsepower trucks.

Custom Applications / Stall Speed

We offer 3 stall options

Low stall- Great for towing, everyday driving, and better fuel mileage.

Stock stall- Works well with trucks that have twin turbos or smaller single turbos that light Relatively quick.

High stall- Used for racing or with large turbos that do not light untill higher RPM.

Other applications are available call to special order.



Warranty

All converters come with a standard 1 year warranty. Warranty does not cover contamination from failed transmissions or unflushed coolers.





Torque Converters   $300.00 Core Charge
47RE/RH



RTC-47-1 $500.00

TC-47-3 $1295.00



47RE Street Converters

Reman Single disc converter rated @ 500hp

Three disc converter rated @ 800hp

It is recomended to upgrade to the billet input shaft and flex plate.



TC-47-4 $1595.00

TC-47-5 $1595.00

47RE Extreme Converters

Four disc converter rated @ 900+hp

Five disc converter rated @ 900+hp

Billet input shaft and flex plate are must with these converters.







48RE



$300.00 Core Charge

RTC-48-1 $500.00

TC-48-3 $1295.00

48RE Street Converters

Reman Single disc converter rated @ 500hp

Three disc converter rated @ 800hp

It is recomended to upgrade to the billet input shaft and flex plate.

TC-48-4 $1595.00

TC-48-5 $1595.00

48RE Extreme Converters

Four disc converter rated @ 900+hp

Five disc converter rated @ 900+hp

Billet input shaft and flex plate are must with these converters.


68RFE   $400.00 Core Charge



TC-68-3 $1395.00

68RFE Street Converter

Three disc converter rated @ 800hp

Must have adequate line pressure (upgraded valve body), and aftermarket overdrive tune.

The stock transmission is only capable of holding 500-600hp reliably.


Allison   $300.00 Core Charge

TC-A-1 $800.00

TC-A-3 $1295.00

Allison Street Converters

Single disc converter rated @ 500hp

Three disc converter rated @ 800hp





TC-A-3HD $1395.00

Allison Extreme Converter

Three disc converter rated @ 900+hp

For large turbos and competition use

Requires billet input shaft


4R100   $300.00 Core Charge



TC-4R-3

Not available



4R100 Street Converter

Three disc converter studded front cover rated @ 500hp





TC-4R-3HD

Not available

4R100 Extreme Converter

Three disc converter with solid billet piston rated @ 500hp


5R110   $300.00 Core Charge



TC-5R-3

Not available

5R110 Street Converter

Three disc converter studded front cover rated @ 500hp

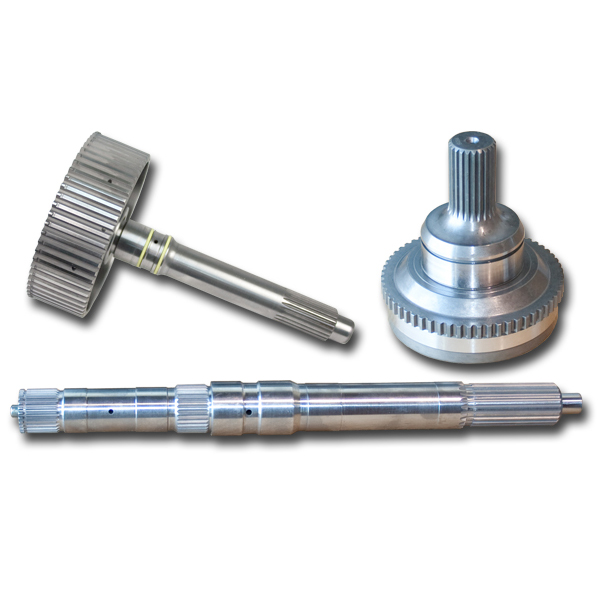

Billet Shafts



47RE/RH-48RE

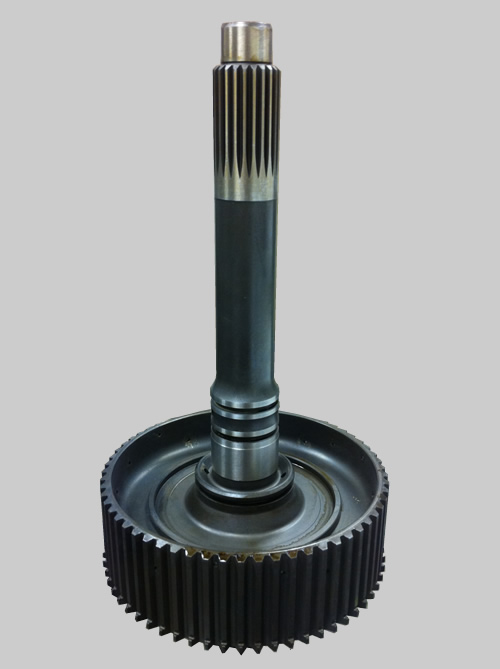

Billet Input

VA618-B $675.00

2 piece 300M shaft with 4340 drum, hardened and cryo treated
inter

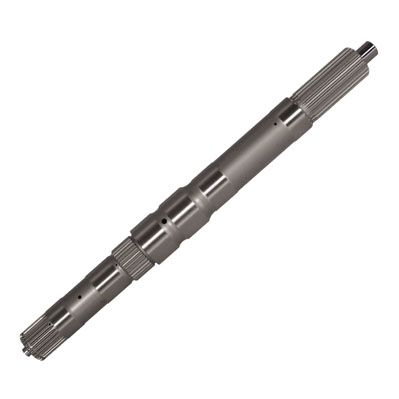

Billet Intermediate

VA618-INTER-B $725.00


inter

Billet Output

VA618-OUT-B $725.00


shaft

Armet Input

VA618-B-SP $900.00

2 piece Armet shaft with 4340 Drum

Flex Plates
47RE/RH-48RE

FP-48-B $249.00 SFI approved Billet
68RFE

billet FP-68-B $269.00 SFI approved Billet
