Dual Disc Clutches for Dodge Cummins



Dodge Cummins Dual Disc Clutches



NV4500 equipped trucks MUST have the upgraded 1-3/8" Input Shaft for these kits to work.

Pressure Plate loads 3200#, 3400#, 3600# and 3850# (Please Specify when Ordering)

Some trucks will have some noise (Gear Rollover) when converting to the solid flywheel.

2005.5 - 2008 Dodge Cummins fitted with Mercedes G56 6 Speed Transmission.

Reverse is to the Left and Down

G56 Billet Dual Disc Clutch

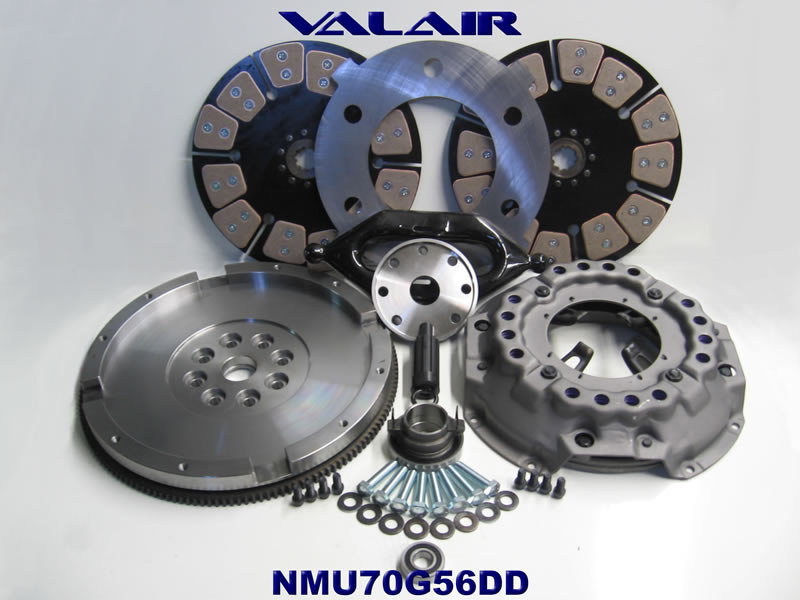

NMU70G56DD
$1350.00

SFI Approved

Dual Disc Kit - up to 800HP
Ceramic Buttons
Billet Steel Flywheel and Floater plate
Pressure Plate Loads - 3200# - 3400# - 3600# - 3850#
Kit includes: New G56 Dual Disc Flywheel, Choice of Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, and Alignment Tool.
NOTE: Requires HD Hydraulic Kit NMU70HYD-03

NMU70G56DDB
$1500.00

SFI Approved

Dual Disc Kit - up to 800HP
Ceramic Buttons
Billet Steel Flywheel with Bronze Insert and Floater plate
Pressure Plate Loads - 3200# - 3400# - 3600# - 3850#
Kit includes: New G56 Dual Disc Flywheel w/Bronze Insert, Choice of Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, and Alignment Tool.
NOTE: Requires HD Hydraulic Kit NMU70HYD-03
G56 Nodular iron Dual Disc Clutch

NMU70G56DDS
$1556.07

SFI Approved

Dual Disc Kit - up to 650HP
Ceramic Buttons
Billet Flywheel and Billet Floater plate
Pressure Plate Load - 3800#
Kit includes: New Billet Sprung hub G56 Dual Disc Flywheel, 3800# Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, and Alignment Tool.
NOTE: Includes HD Hydraulic Kit NMU70HYD-03






G56 Nodular iron Dual Disc Clutch

NMU70G56DDSN
$1250.00

Not for Competion Use

Dual Disc Kit - up to 650HP
Ceramic Buttons
Nodular Iron Flywheel and Billet Floater plate
Pressure Plate Load - 3800#
Kit includes: New Nodular Sprung hub G56 Dual Disc Flywheel, 3800# Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, and Alignment Tool.
NOTE: Includes HD Hydraulic Kit NMU70HYD-03






G56 Nodular iron Dual Disc Clutch

NMU70G56DDSN-ORGANIC
$1250.00

Not for Competion Use

Towing Dual Disc

Not for Racing applications

Dual Disc Kit - up to 550HP
Organic Facings
Nodular Iron Flywheel and Billet Floater plate
Pressure Plate Load - 3800#
Kit includes: New Nodular Sprung hub G56 Dual Disc Flywheel, 3800# Pressure Plate, Organic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, and Alignment Tool.
NOTE: Includes HD Hydraulic Kit NMU70HYD-03

If you have a 500HP truck and tow alot this is the only way to go. This clutch has a very smooth engagement.















2000 - 2005 Dodge Cummins fitted with NV5600 6 Speed Transmission.

Reverse is to the Right and Up

Dodge NV5600 Dual Disc

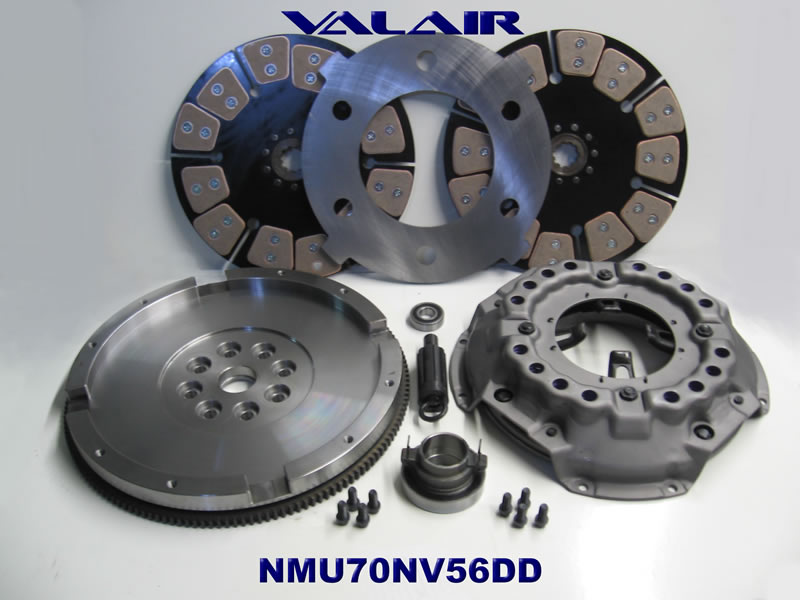

NMU70NV56DD
$1242.37

SFI Approved

Dual Disc Kit - Up to 800HP
Ceramic Buttons
Billet Steel Flywheel and Floater plate
Pressure Plate Loads - 3200# - 3400# - 3600# - 3850#
Kit includes: New Billet Dual Disc Flywheel, Choice of Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Bolt Kit, and Alignment Tool.
NOTE: Requires HD Hydraulic Kit:
NMU70HYD-03 for 3rd Gen Trucks
NMU70HYD-02 for 2nd gen Trucks

Dodge Dual Disc Clutch Kit

NMU70NV56DDB
$1457.47

SFI Approved

Dual Disc Kit - Up to 800HP
Ceramic Buttons
Billet Steel Flywheel with Bronze Insert and Floater plate
Pressure Plate Loads - 3200# - 3400# - 3600# - 3850#
Kit includes: New Billet Dual Disc Flywheel w/Bronze Insert, Choice of Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Bolt Kit, and Alignment Tool.
NOTE: Requires HD Hydraulic Kit:
NMU70HYD-03 for 3rd Gen Trucks
NMU70HYD-02 for 2nd gen Trucks
Nodular Iron NV5600 Dual Disc Clutch

NMU70NV56DDN
$900.00

Not for Competion Use

Dual Disc Kit - Up to 650HP
Ceramic Buttons
Nodular Ironl Flywheel and Billet Floater plate
Pressure Plate Load - 3250#
Kit includes: New Nodular Iron Dual Disc Flywheel, 3250# Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Bolt Kit, and Alignment Tool.
NOTE: Requires HD Hydraulic Kit:
NMU70HYD-03 for 3rd Gen Trucks
NMU70HYD-02 for 2nd gen Trucks
G56 Nodular iron Dual Disc Clutch

NMU70NV56DDS
$1319.42

SFI Approved

Dual Disc Kit - up to 650HP
Ceramic Buttons
Billet Flywheel and Billet Floater plate
Pressure Plate Load - 3800#
Kit includes: New Billet Sprung hub NV5600 Dual Disc Flywheel, 3800# Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, and Alignment Tool.

1994 - 2003 Dodge Cummins fitted with NV4500 5 Speed Transmission.

Reverse is to the Right and Down

Dodge NV4500 Billet Dual Disc Clutch Kit

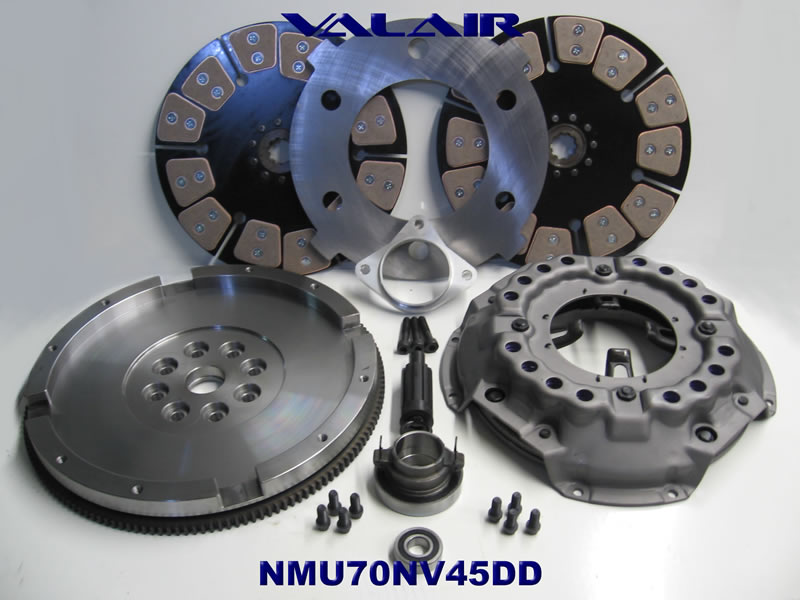

NMU70NV45DD
$1242.37

SFI Approved

Dual Disc Kit - Up to 800HP
Ceramic Buttons
Billet Steel Flywheel and Floater plate
Pressure Plate Loads - 3200# - 3400# - 3600# - 3850#
Kit includes: New Billet Dual Disc Flywheel, Choice of Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Starter Spacer, Bolt Kit, and Alignment Tool.
NOTE: Requires HD Hydraulic Kit:
NMU70HYD-03 for 3rd Gen Trucks
NMU70HYD-02 for 24V 2nd gen Trucks

Dodge Dual Disc Clutch Kit

NMU70NV45DDB
$1457.47

SFI Approved

Dual Disc Kit - Up to 800HP
Ceramic Buttons
Billet Steel Flywheel with Bronze Insert and Floater plate
Pressure Plate Loads - 3200# - 3400# - 3600# - 3850#
Kit includes: New Billet Dual Disc Flywheel w/Bronze Insert, Choice of Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Starter Spacer, Bolt Kit, and Alignment Tool.
NOTE: Requires HD Hydraulic Kit:
NMU70HYD-03 for 3rd Gen Trucks
NMU70HYD-02 for 24V 2nd gen Trucks
Nodular Iron NV4500 Dual Disc Clutch

NMU70NV45DDN
$900.00

Not for Competion Use

Dual Disc Kit - Up to 650HP
Ceramic Buttons
Nodular Iron Flywheel and Billet Floater plate
Pressure Plate Load - 3250#
Kit includes: New Nodular Iron Dual Disc Flywheel, 3250# Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Starter Spacer, Bolt Kit, and Alignment Tool.
NOTE: Requires HD Hydraulic Kit:
NMU70HYD-03 for 3rd Gen Trucks
NMU70HYD-02 for 24V 2nd gen Trucks
G56 Nodular iron Dual Disc Clutch

NMU70NV45DDS
$1378.58

SFI Approved

Dual Disc Kit - up to 650HP
Ceramic Buttons
Billet Flywheel and Billet Floater plate
Pressure Plate Load - 3800#
Kit includes: New Billet Sprung hub NV4500 Dual Disc Flywheel, 3800# Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, Starter Spacer. and Alignment Tool.

Misc Items .

NV4500 Input Shaft

 VA1.375K
$400.00

1-3/8" Input Shaft Upgrade

Complete upgrade kit for NV4500 with 1-1/4" Input Shafts.

VA1.375B
$650.00

1-3/8" Made in USA 4340 Billet Input Shaft Upgrade

Complete upgrade kit for NV4500 with 1-1/4" Input Shafts.

Dodge Release Bearing

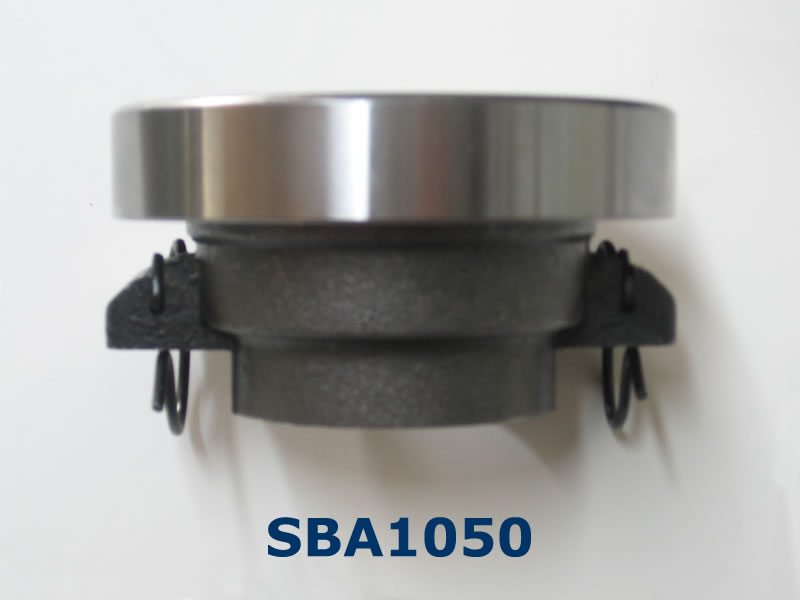

 SBA1050
$34.92

Standard Release Bearing (Throw-out Bearing)
All Models with Mercedes G56, NV4500 & NV5600 Transmission

Dodge HD Pilot Bearing

 1635-2RS
$9.43

Heavy Duty Pilot Bearing for Dual Disc Clutch Kits
NOTE: Only Fits Flywheels Modified for HD Pilot

Dodge Clutch Alignment Tool

 AT5385
$2.00

1.375" Alignment Tool
All Models with Mercedes G56 & NV5600 Transmission
Also for use on NV4500 with Upgraded 1-3/8" Input Shaft

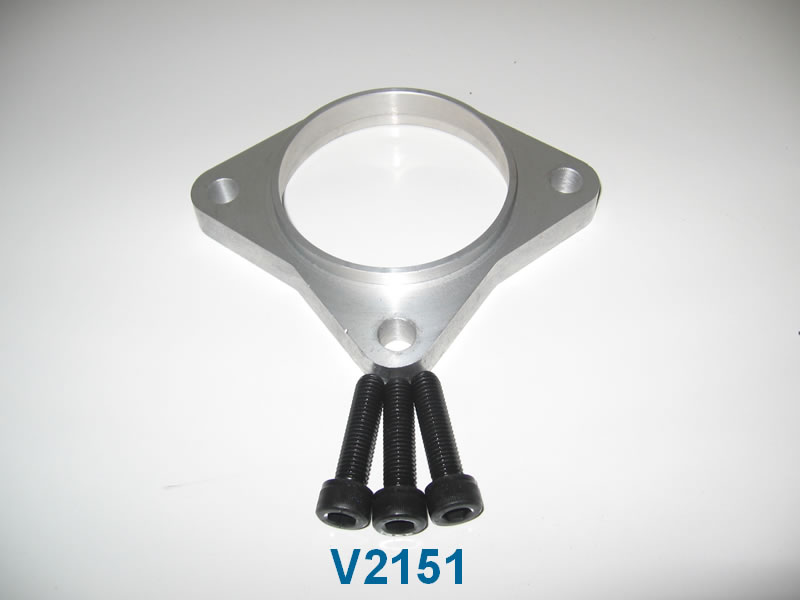

Starter Spacer Kit V2151
$63.48

Starter Spacer Kit
Allows the use of the 5 Speed Starter and NV4500 Transmission with a NV5600 Flywheel

Used with our Premiun 13" upgrades and NV4500 Dual Discs
