Ford Standard and Performance Clutches

6 Speed Transmissions 1999 thru 2003


13" Standard and Performance Clutches

1999 - 2003 7.3L Direct Injection Diesel.

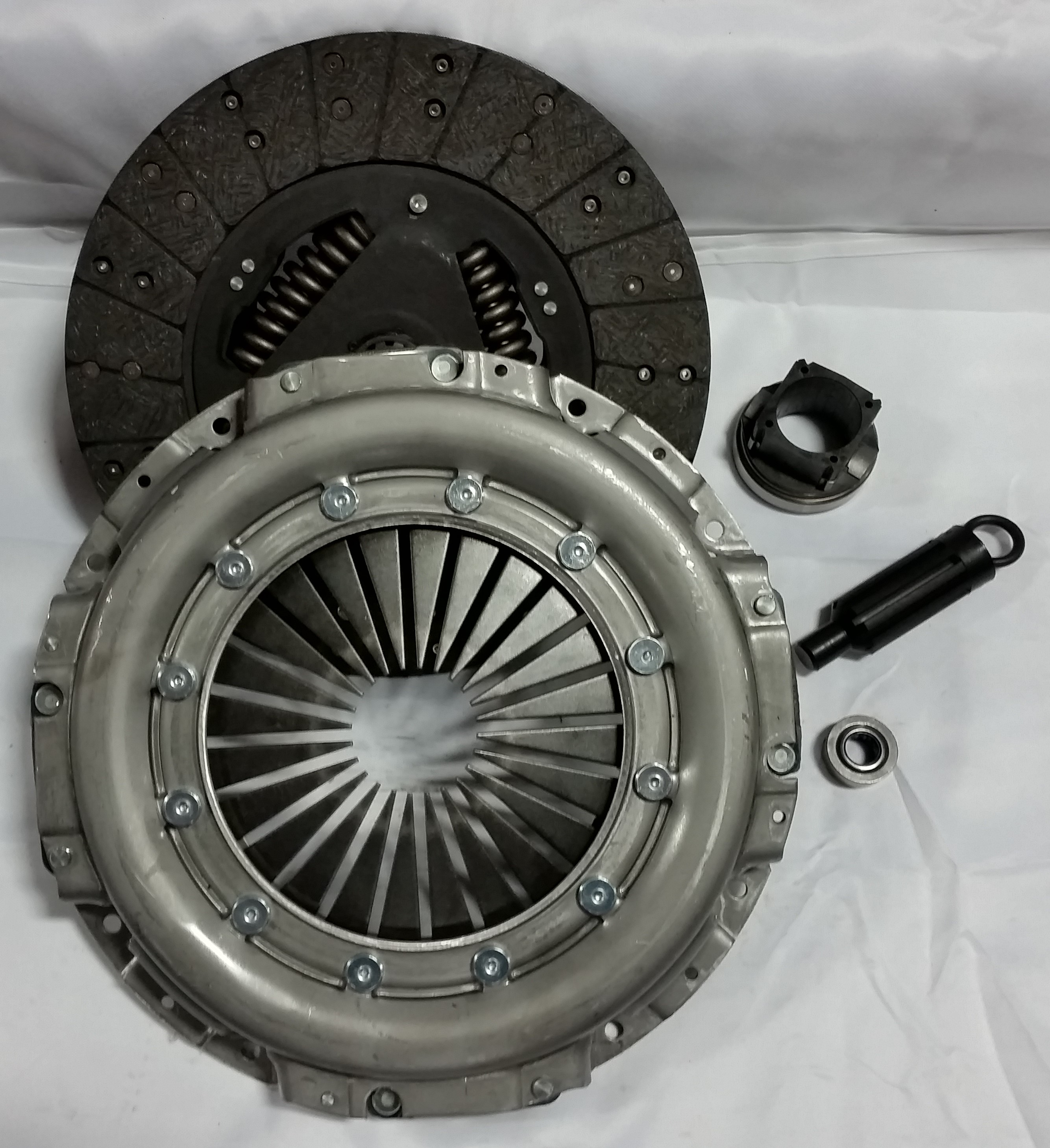

NMU70241-01

NMU70241
$349.38

13" x 1.375" Stock Organic Replacement
Organic Facings
OEM Style Hub
Rated @ Stock HP
3400# Pressure Plate
Kit includes: 3400# Pressure Plate, Clutch Disc, Release Bearing, Pilot Bearing and Alignment Tool.

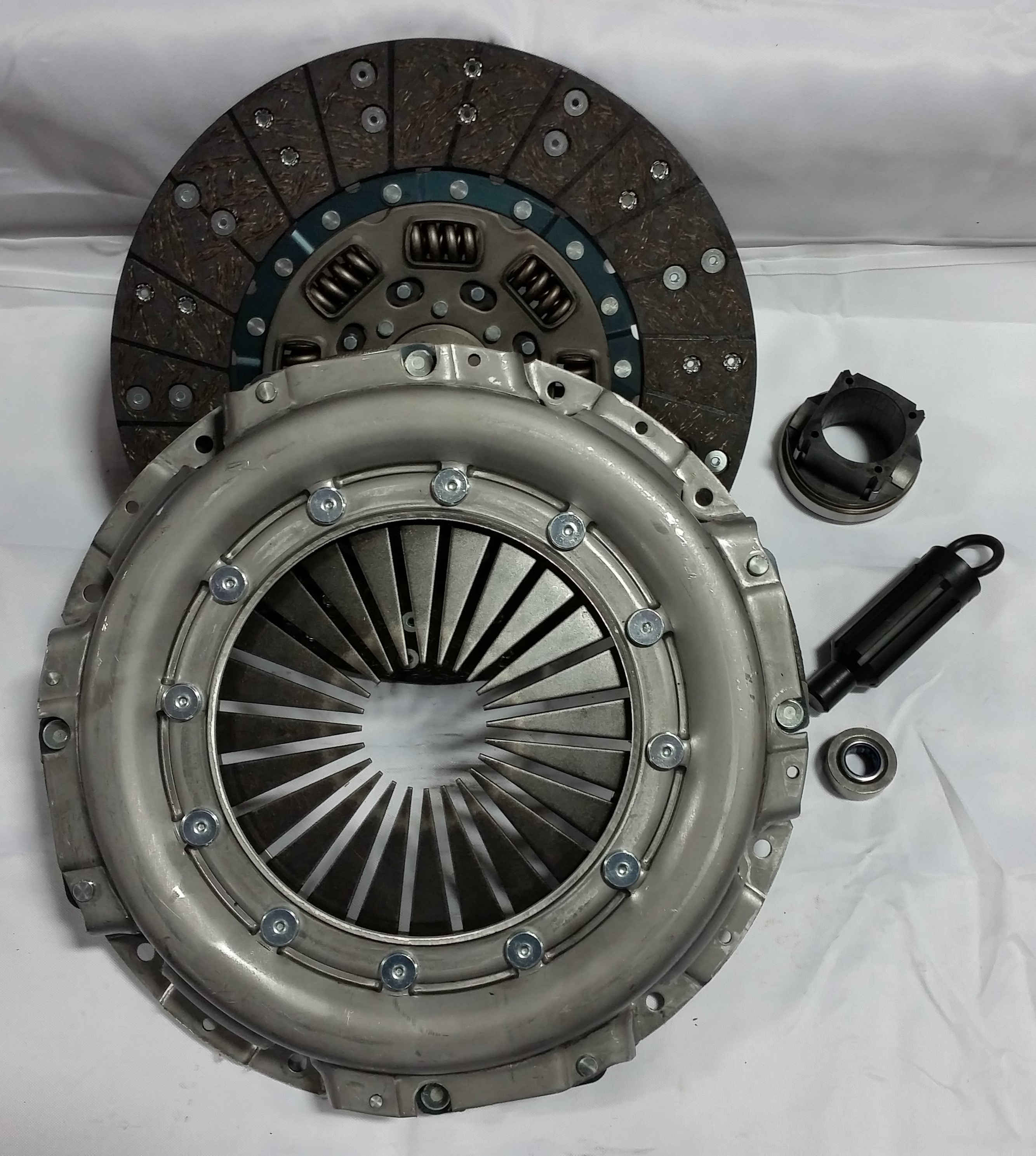

NMU70241-01
$467.82



13" x 1.375" Heavy Duty OEM Replacement
Wide Organic Facings

Rated @ 400HP / 800 ft lbs Torque
3400# Pressure Plate
Kit includes: 3250# Pressure Plate, Clutch Disc, Release Bearing, Pilot Bearing and Alignment Tool.

NMU70241-01 HD

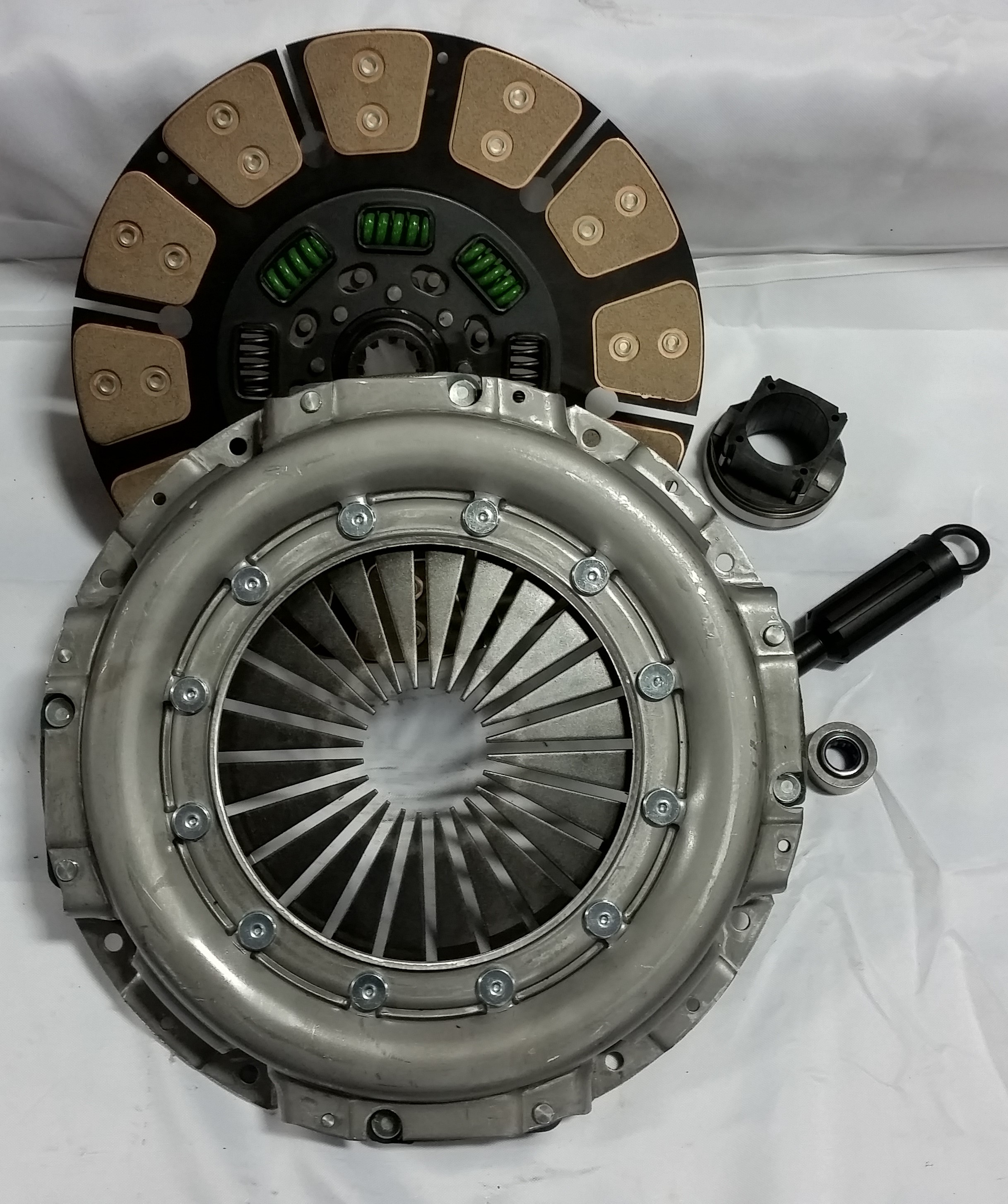

NMU70241-04
$747.90

NOT FOR TOWING

13" x 1.375" Performance Replacement
Ceramic Buttons
HD Spring Hub
Rated @ 600HP / 1100 ft lbs Torque
3400# Pressure Plate
Kit includes: 3400# Pressure Plate, Heavy Duty Clutch Disc, Release Bearing, Pilot Bearing and Alignment Tool.




NMU70241-04

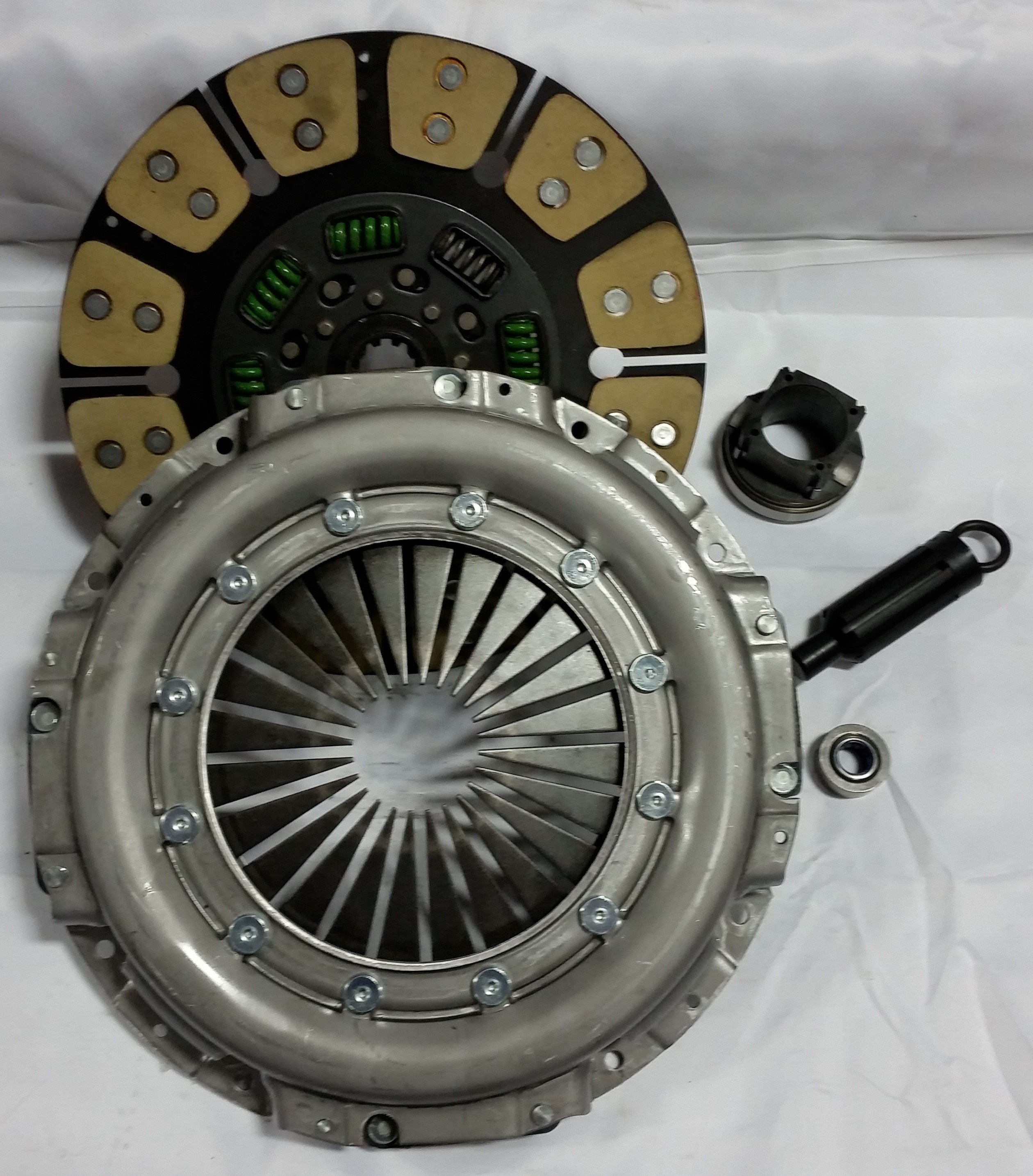

NMU70241-06
$946.52

This is not a Dual Diac Clutch. Picture is showing both sides of disc.

13" x 1.375" Performance Replacement
Ceramic / Kevlar Buttons (both sides of disc shown)
HD Spring Hub
Rated @ 500HP / 1000 ft lbs Torque
3400# Pressure Plate
Kit includes:3400# Pressure Plate, Clutch Disc, Release Bearing, Pilot Bearing and Alignment Tool.

Misc Items

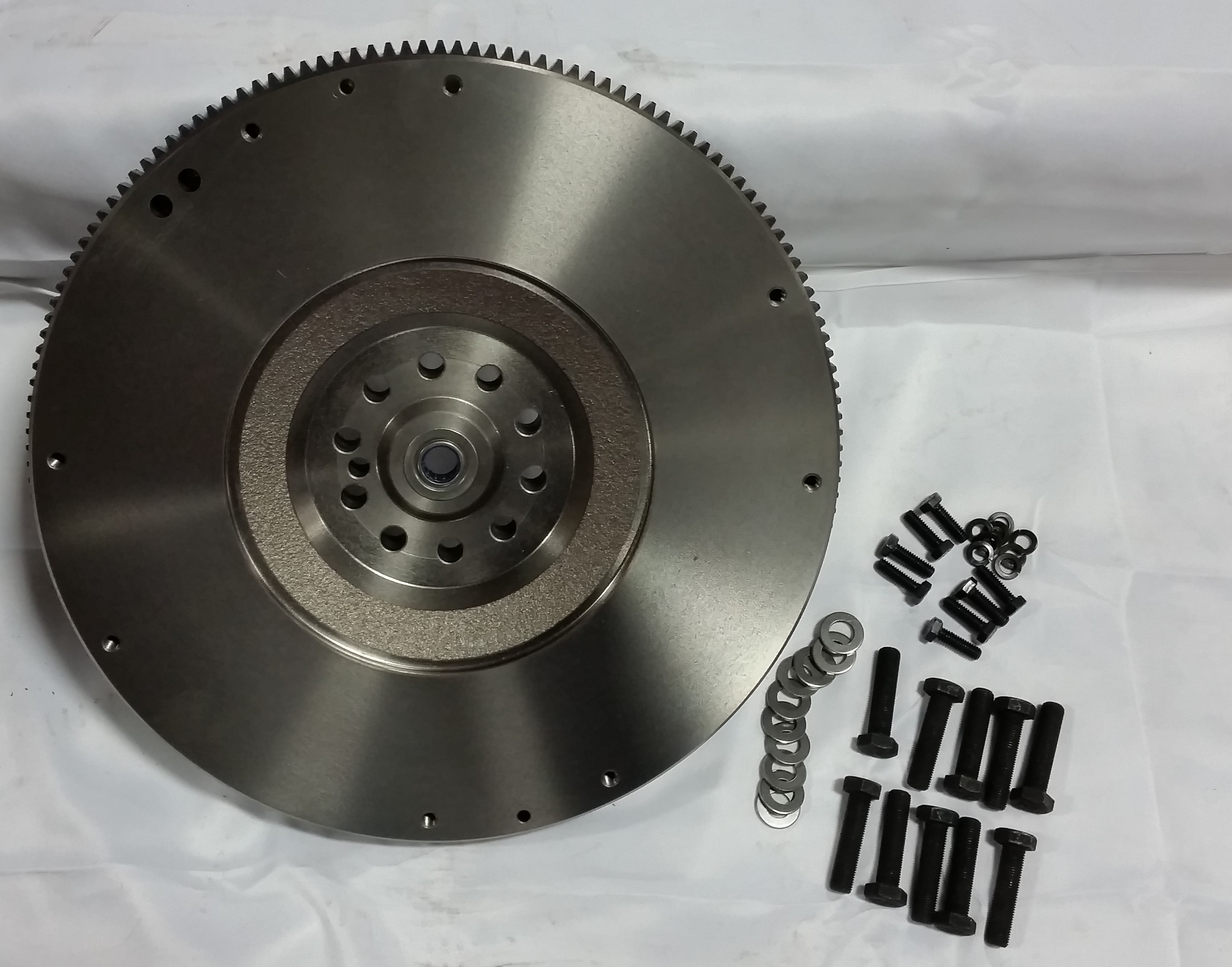

V2130

V2130
$284.89

New 13" 6 Speed Flywheel
This flywheel does not use dowel pins.

Do not reuse the factory dowel pins from your old flywheel.

This is drilled to accept 13.00" pressure plates.

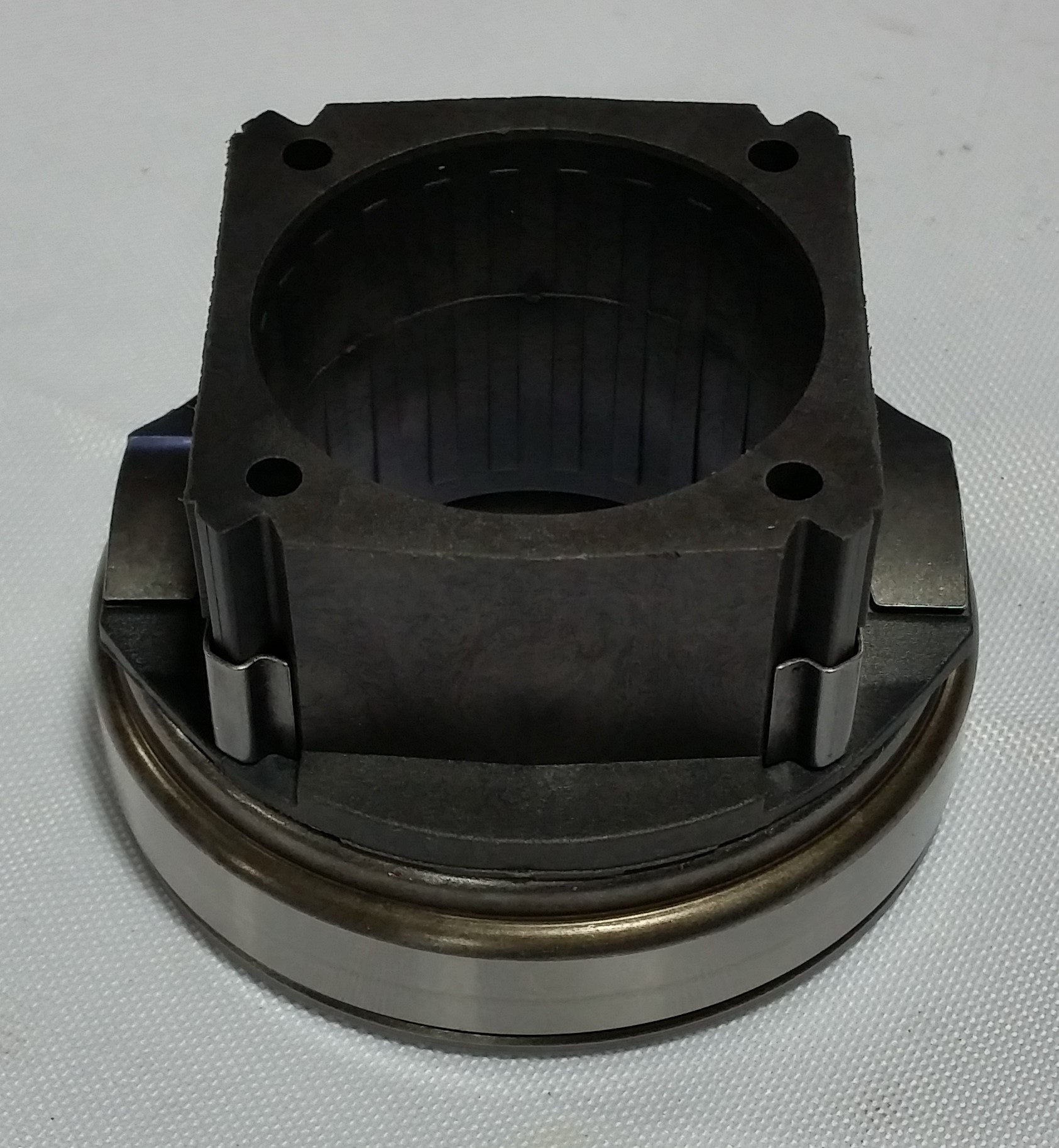

NA1765SA

NA1765SA
$38.80



Standard Release Bearing (Throw-out Bearing)
All Models with 7.3L Direct Injection Diesel with 6 Speed transmission

Ford Pilot Bearing

FC65662
$10.00

Standard Pilot Bearing
All Models with 7.3L Direct Injection Diesel

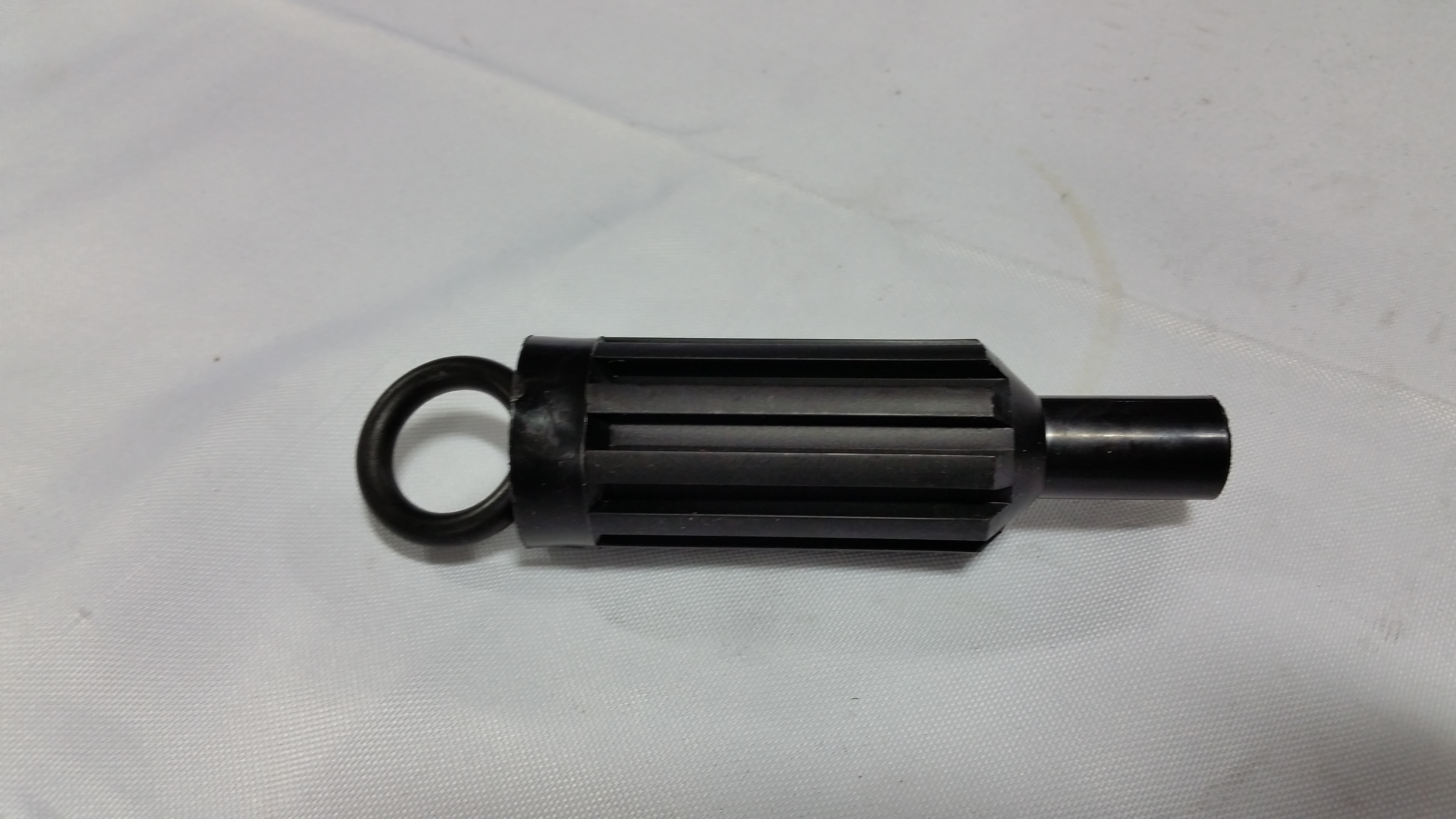

AT5325

AT5325
$3.06



1.375" Alignment Tool
All Models with 1.375" Input Shaft and 6 Speed Transmission
